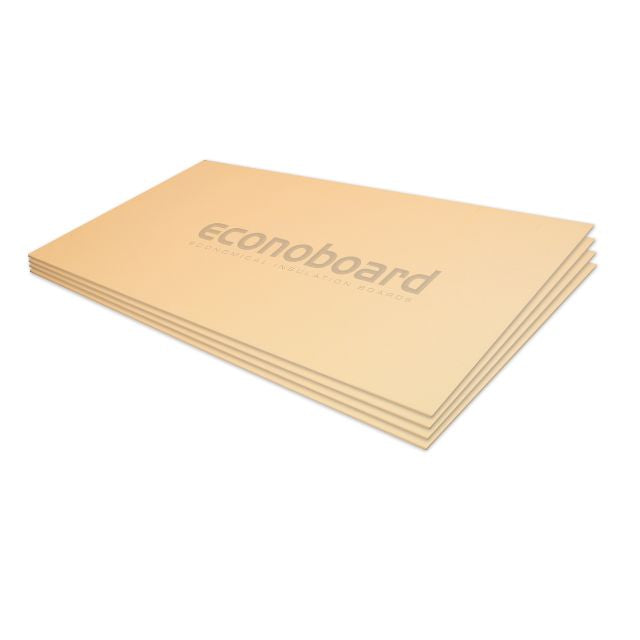

Thermogroup Econoboard uncoated insulation boards for under floor heating at The Blue Space

Thermogroup Econoboard Uncoated Thermal Insulation Boards 10mm - 10 pack (7.2sqm)

SKU 6014

Bathroom Heating & Ventilation by Thermogroup

RRP $390

$351

Quantity

Add to wishlist

0 In Stock*

Improve the efficiency of your Underfloor Heating by up to 50% through preventing downward heat loss and reducing your heat up times.
R Value (m²k/w) 0.3
100% moisture resistance and rot proof.
Ensures minimal heat loss into the substrate.
Easy to install - cut with regular hand tools.
Uncoated Boards can be glued to a concrete substrate using flexible tile glue.
Allow enough insulation board to cover your entire floor area.
Uncoated Econoboard is not recommended for use where a waterproofing layer will be applied directly over the insulation. In this application please use the Coated Econoboard.
Econoboard is warranted against material defect for the lifetime warranty of the original floor covering under which it is installed.

Description

Heat travels equally in all directions until it reaches a layer of thermal resistance. A layer of Econoboard Insulation Boards beneath the Underfloor Heating to act as a thermal resistance layer and stops the downward heat loss. Like all insulation, it is optional, however, it will pay itself off in the long term by reducing the ongoing running costs of the Underfloor Heating.

Technical Data

Board Size 1.2 x 0.6
Board Area 0.72m2
Pack Area 7.2m²
R Value (m²k/w) 0.3
Thermal Conductivity 0.033W/MK
Compressive Strength 300 kpa
Water Absorption 0.6% by vol
Temperature Range -50°C to +75°

What's In The Box

10 x 10mm boards 1.2m x 0.6m
